Variable Attenuator (Total 1 Products)

Product categories of Variable Attenuator, we are specialized manufacturers from China, Portable Impact Attenuator, Attenuator Amplifier suppliers/factory, wholesale high-quality products of Attenuator Fixed R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
Variable Attenuator Series

Brand: CNI

Packaging: Static free plastic bag

Supply Ability: 500

CNI provides 3 kinds of variable attenuators for different application The circular variable attenuator can make the optical density linearly varies around a 0 270 circle for measuring laser energy farthest As for the square one the optical density...

China Variable Attenuator Suppliers

Variable Attenuator

CNI provides 3 kinds of variable attenuators for different application.The circular variable attenuator can make the optical density linearly varies around a 0°-270° circle for measuring Laser energy farthest. As for the square one, the optical density linearly varies across the length for measuring laser energy. Also the high power variable attenuator is available for customization.

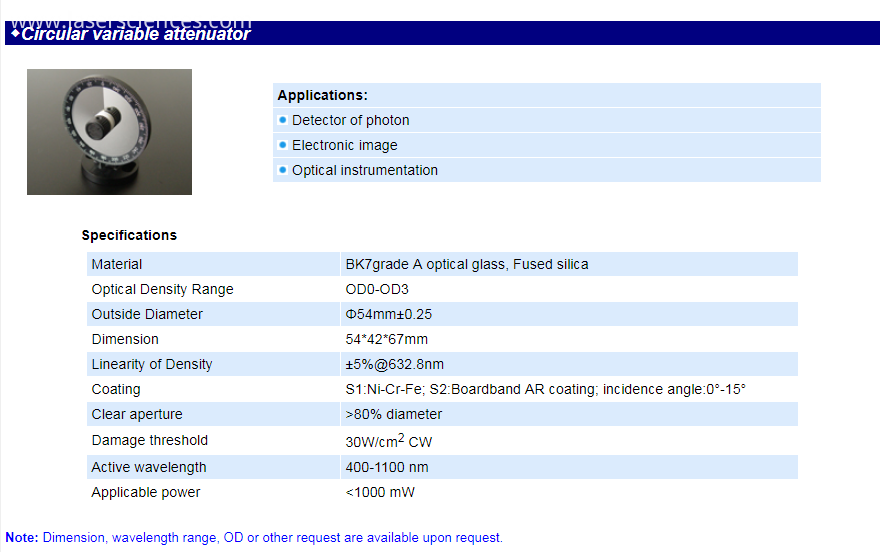

Circular variable attenuator

attenuator

Applications:


Detector of photon


Electronic image


Optical instrumentation

Specification


Material BK7grade A optical glass, Fused silica
Optical Density Range OD0-OD3
Outside Diameter Φ54mm±0.25
Dimension 54*42*67mm
Linearity of Density ±5%@632.8nm
Coating S1:Ni-Cr-Fe; S2:Boardband AR coating; incidence angle:0°-15°
Clear aperture >80% diameter
Damage threshold 30W/cm2 CW
Active wavelength 400-1100 nm
Applicable power

<1000 mW

Note: Dimension, wavelength range, OD or other request are available upon request.

◆Square variable attenuator


Neutral Density Filters

Applications:


Electronic image


Detector of photon


Optical instrumentation

Specification

Material BK7grade A optical glass, Fused silica
Optical Density Range OD0-OD2
Dimension 76.2*25.4*2.0mm
Linearity of Density OD±5%
Coating S1:Ni-Cr-Fe; S2:Boardband AR coating; incidence angle:0°-15°
Clear aperture >80% diameter
Damage threshold 30W/cm2 CW
Active wavelength 400-1100 nm

Note: Dimension, wavelength range, OD or other request are available upon request.

◆Portable variable attenuator

Variable-Attenuator

Specifications:


Dimensions: Φ33 mm ×65 (L) mm


Wavelength: 400-1100 nm

(Other wavelengths can be customized)
