Fiber Coupled LED (Total 7 Products)
Product categories of Fiber Coupled LED, we are specialized manufacturers from China, Fiber Coupled Led Light Sources, Single Mode Fiber Coupled Led suppliers/factory, wholesale high-quality products of Fibre Coupled Led R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
Brand: CNI
Packaging: Static free plastic bag
Supply Ability: 500
375nm to 940nm Multimode wavelength LED are designed for microscopy and other applications that require multiple color channels The LED current of each channel can be adjusted independently or modulated via an external voltage The multi wavelength...
Brand: CNI
Packaging: Static free plastic bag
Supply Ability: 500
375nm 395nm 405nm 430nm 460nm 470nm 500nm 530nm 565nm 600nm 620nm 625nm 660nm 730nm 808nm 850nm 880nm 940nm 1050nm 1550nm Each fiber coupled LED consists of a single LED optical fiber and power supply of LED LED is coupled to the optical fiber using...
Brand: CNI
Packaging: Static free plastic bag
Supply Ability: 500
375nm to 940nm Multimode wavelength LED are designed for microscopy and other applications that require multiple color channels The LED current of each channel can be adjusted independently or modulated via an external voltage The multi wavelength...
Brand: CNI
Packaging: Static free plastic bag
Supply Ability: 500
375nm to 940nm Multimode wavelength LED are designed for microscopy and other applications that require multiple color channels The LED current of each channel can be adjusted independently or modulated via an external voltage The multi wavelength...
Brand: CNI
Packaging: Static free plastic bag
Supply Ability: 500
375nm to 940nm Multimode wavelength LED are designed for microscopy and other applications that require multiple color channels The LED current of each channel can be adjusted independently or modulated via an external voltage The multi wavelength...
Brand: CNI
Packaging: Static free plastic bag
Supply Ability: 500
375nm to 940nm Multimode wavelength LED are designed for microscopy and other applications that require multiple color channels The LED current of each channel can be adjusted independently or modulated via an external voltage The multi wavelength...
Brand: CNI
Packaging: Static free plastic bag
Supply Ability: 500
375nm to 940nm Multimode wavelength LED are designed for microscopy and other applications that require multiple color channels The LED current of each channel can be adjusted independently or modulated via an external voltage The multi wavelength...
China Fiber Coupled LED Suppliers
Fiber Coupled LED
■ UV, Visible, and NIR Versions (from 375nm to 1550nm)
■ The SMA connector is ideal for multimode fiber.
■ Multi-wavelength Fiber Coupled LED available.
|
|
|
Data Sheet for Single Wavelength LED
|
| Model | Color | Nominal Wavelength (nm) | Bandwidth FWHM (nm) | Typical Φ600um Core Fiber Output Power SMA (mW) | Maximum Current CW (mA) | Forward Voltage (V) | Typical Lifetime (h) |
| LFM375 | UV | 375 | 9 | 3.0 | 1400 | 3.6 | ~10000 |
| LFM395 | UV | 395 | 16 | 1.0 | 500 | 4.5 | ~10000 |
| LFM405 | UV | 405 | 12 | 4.2 | 1400 | 3.45 | ~10000 |
| LFM430 | Violet | 430 | 15 | 1.0 | 500 | 3.8 | ~10000 |
| LFM460 | Royal Blue | 460 | 25 | 6.0 | 1000 | 3.6 | ~10000 |
| LFM470 | Blue | 470 | 25 | 3.2 | 1000 | 3.2 | ~10000 |
| LFM500 | Cyan | 500 | 30 | 2.2 | 1000 | 3.3 | ~10000 |
| LFM530 | Green | 530 | 33 | 3.0 | 1000 | 3.2 | ~10000 |
| LFM565 | Lime | 565 | 104 | 3.0 | 1000 | 3.1 | ~10000 |
| LFM600 | Amber | 600 | 15 | 1.2 | 1000 | 2.6 | ~10000 |
| LFM620 | Red | 620 | 18 | 5.5 | 1000 | 2.2 | ~10000 |
| LFM625 | Red | 625 | 17 | 3.0 | 1000 | 2.2 | ~10000 |
| LFM660 | Deep Red | 660 | 20 | 4.0 | 1200 | 2.6 | ~10000 |
| LFM730 | Far Red | 730 | 37 | 1.5 | 1000 | 2.3 | ~10000 |
| LFM808 | IR | 808 | 25 | 2.5 | 500 | 3.6 | ~10000 |
| LFM850 | IR | 850 | 30 | 3.0 | 1500 | 3.85 | ~10000 |
| LFM880 | IR | 880 | 50 | 1.0 | 1000 | 1.7 | ~10000 |
| LFM940 | IR | 940 | 37 | 3.0 | 1000 | 2.75 | ~10000 |
| LFM1050 | IR | 1050 | 37 | 2.0 | 600 | 1.4 | ~10000 |
| LFM1550 | IR | 1550 | 102 | 1.0 | 700 | 1.1 | ~10000 |
Note:
1. The above testing data are only for reference, the actual spectrum of LED may change since the temperature or other parameters are different when operating the current.
2.The above data was tested by 600μm core diameter, 0.22 NA multimode fibers. Other core diameter fibers are available on request.

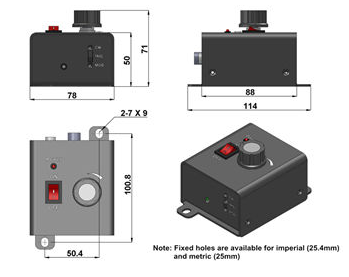

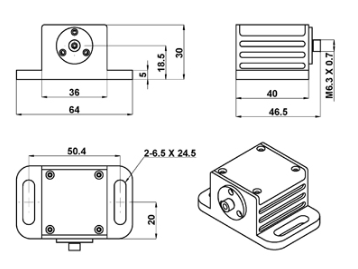

| Laser Head | Power Supply |
|
|
| 64 (L) ×46.5 (W) ×30 (H) mm3 | 114 (L) ×78 (W) ×71 (H) mm3 |
Data Sheet for Multi-wavelength LED
|
| Parameters | Indicators |
| Available wavelength (nm) | 375-940 |
| Output mode | Fiber output |
| Fiber core diameter (μm) | 400, 600, 800, 1000 |
| Fiber connector | SMA905 |
| Output power (mW) | Related to fiber |
| Power stability (rms, over 4 hours) | <3%, <5% |
| Operating mode | CW, TTL or Analog on request |
| Operating temperature (°C) | 10~35 |
Dimensions
| 192(L)*241(w)*139.9(H)mm3
|
Input power
| 12VDC 7A
|
Cooling method
| By air
|
Storage temperature (°C)
| -20~80
|
Lifetime (hours)
| 10000
|

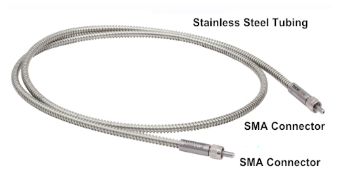

Fiber Specs
|
|
|
