AOM And Shutter (Total 3 Products)

Product categories of AOM And Shutter, we are specialized manufacturers from China, Pulse Modulator, Pulse Width Modulation suppliers/factory, wholesale high-quality products of Pulse Frequency Modulation R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
AOM (Acousto-optic Modulator) and Shutter Series

Brand: CNI

Packaging: Static free plastic bag

Supply Ability: 500

AOM belongs to the high speed acousto optic pulse modulator which realizes the intensity modulation over the laser according to the inputted pulse signal and gets corresponding digitally coded optical signal by inputting the digital signal of...
Change The Rise Time And Fall Time

Brand: CNI

Packaging: Static free plastic bag and carton, Protective packing

Supply Ability: 500

Product Description Cost effective mechanical shutter with repetition rate maximum 10 Hz The valid output power is up to 3W available The rise and fall time can be lower to 0 7 ms Delay time is minimum 5 ms Specifications Model shutter I shutter II...
High-speed Acousto-optic Pulse Modulator

Brand: CNI

Packaging: Static free plastic bag and carton, Protective packing

Supply Ability: 500

Product Description It belongs to the high speed acousto optic pulse modulator which realizes the intensity modulation over the laser according to the inputted pulse signal and gets corresponding digitally coded optical signal by inputting the...

China AOM And Shutter Suppliers

AOM (Acousto-optic Modulator)

5_ao_modulator_1

It belongs to the high-speed acousto-optic Pulse Modulator which realizes the intensity modulation over the Laser according to the inputted pulse signal and gets corresponding digitally coded optical signal by inputting the digital signal of different codes and frequencies (TTL/ Analog) into the driving power supply of modulator. It is mainly used in such fields as laser text-image processing and laser digital communication.

This product has such characteristics as quick modulation rate, small volume, high efficiency, high extinction ratio, easy coding and convenient use.

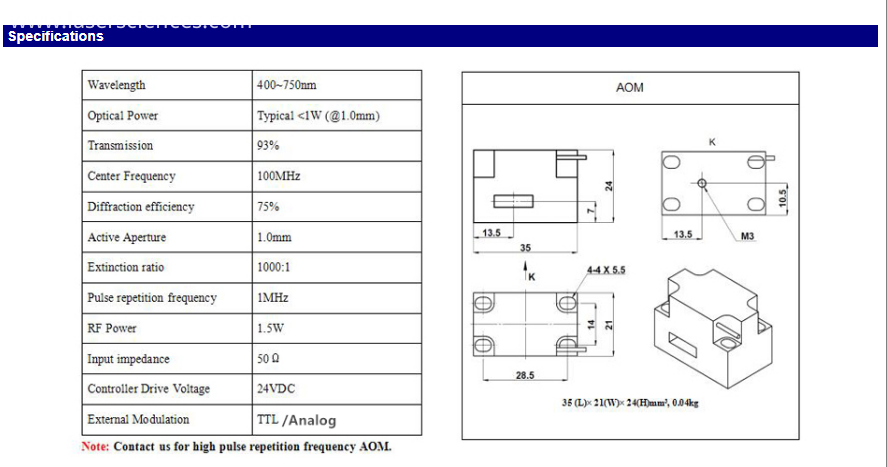

AOM Specifications

Wavelength 400-750nm
Optical Power Typical <1W (@1.0nm)


35(L) x 21 (W) x 24(H) cm^3, 0.04kg

Transmission 93%
Center Frquency 100MHz
Diffraction efficiency 75%
Active Aperture 1.0 mm
Extinction Ratio 1000:1
Pulse repectition frequency 1MHz
RF power 1.5W
Input impedance 50Ω
Controller Drive Voltage 24VDC
External Modulatioin TTL / Analog
Note: Contact us for high pulse repetition frequency AOM.

Shutter

Shutter
Cost-effective mechanical shutter, with repetition rate maximum 10 Hz. The valid output power is up to 3W available. The rise and fall time can be lower to 0.7 ms. Delay time is minimum 5 ms.

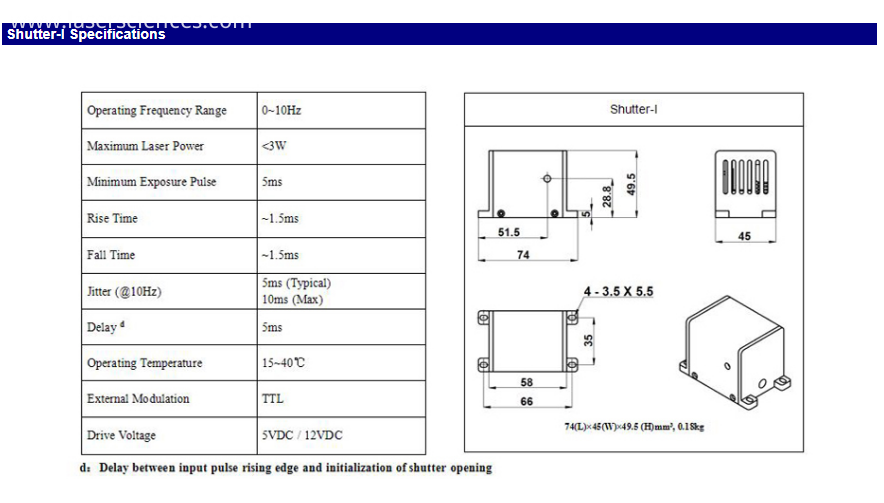

Shutter-I Specifications

Operating Frequency Range
0-10Hz Shutter-i
Maximum Laser Power <3W

74(L) x 45(W) x 49.5(H) mm^3, 0.1kg

Minimum Exposure Pulse 5ms
Rise Time ~1.5ms
Fall TIme

~1.5ms

Jitter (@10Hz)

5ms (Typical)

10ms (Max)

Delay d 5ms
Operating Temperature 15~40 ℃
External Modelation TTL
Drive Voltage 5VDC / 12VDC


d: Delat between input pulse rising edge and initialization of shutter opening
